Crawler Mounted Mineral Geological Exploration Core Barrel Wireline Diamond Core Drilling Rig Mud Pump Rotary

Product Description:

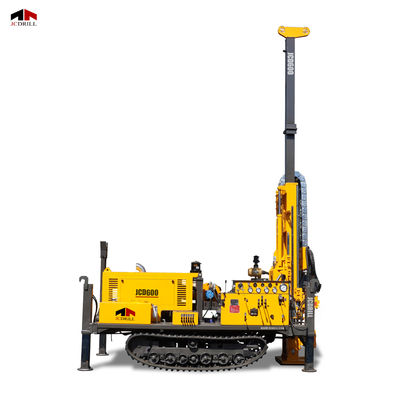

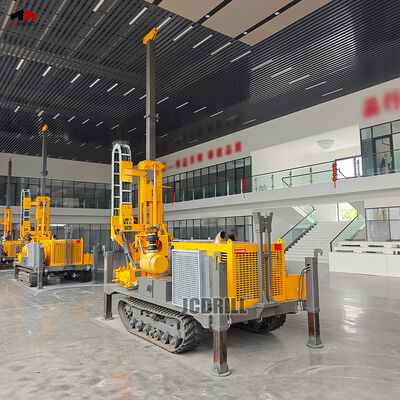

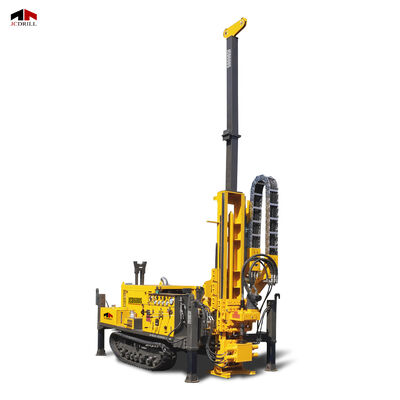

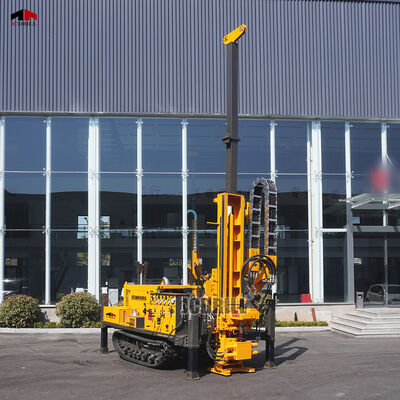

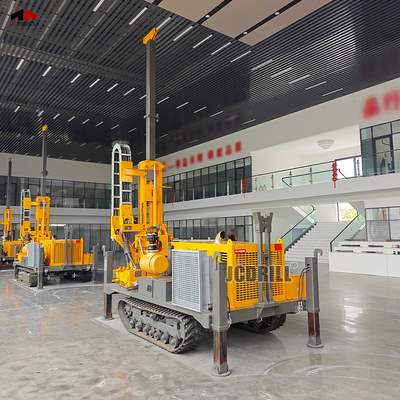

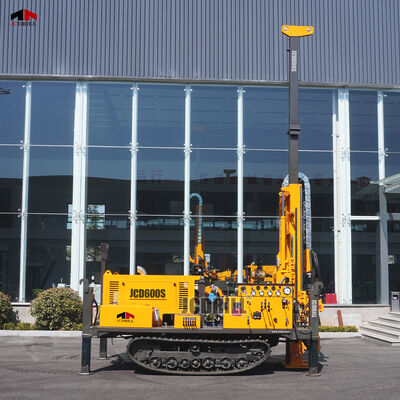

JCD600 is a robust full-hydraulic core drilling rig designed for efficient performance in mineral exploration and geological investigation. It is optimized  for wireline coring techniques using HTW, NTW, and BTW drill rods, with a maximum depth capacity of 800 meters. Powered by a 92kW YUCHAI turbocharged diesel engine, the rig delivers enhanced torque and consistent performance, especially under demanding field conditions. The hydraulic system runs at a rated pressure of 20MPa and a flow rate of 220 L/min, ensuring stable operation for all drilling functions.

Parameter:

Features:

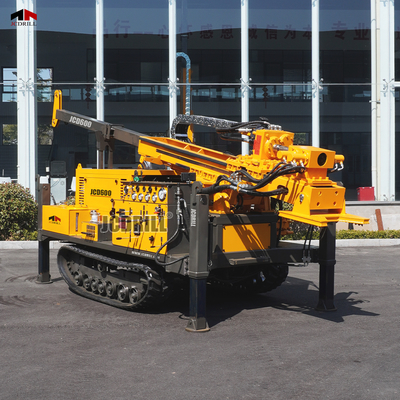

>> JCD600 is powered by a 92kW YUCHAI turbocharged engine paired with a high-efficiency 220L/min hydraulic system. This setup delivers reliable torque output and responsive control, ensuring smooth performance during continuous and demanding drilling  operations.

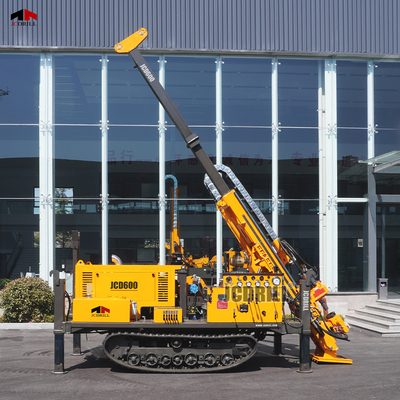

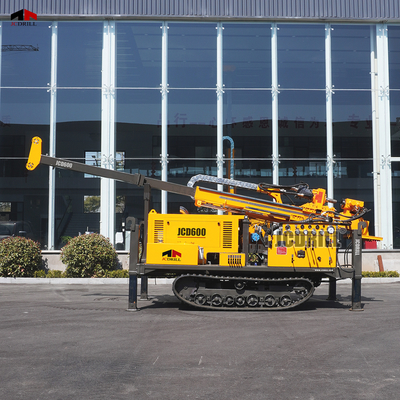

>> The rig is equipped with a one-piece ground-touching mast that supports drilling angles from 45° to 90°. With a 1900mm feed stroke and a 16-ton pull-up capacity, it provides excellent stability and drilling accuracy across various geological conditions.

>> To enhance efficiency in deeper hole operations, JCD600 integrates a BW-120  mud pump and a 700-meter rope hoist system. These components ensure consistent flushing and easy rod handling, reducing downtime and improving overall productivity.
>> For flexible field operation, the rig supports both manual and remote control  modes. Its ability to travel at 3.5 km/h and climb slopes up to 40° makes it highly adaptable to rugged and remote job sites.

Applications:

Mineral Exploration Projects
Perfect for prospecting and evaluating mineral deposits, the JCD400 delivers continuous and high-quality core samples—critical for determining ore grade and geological structure.

Geotechnical Investigations
Commonly used in civil engineering projects such as tunnels, bridges, dams, and highways to assess subsurface conditions and foundation stability before construction.

Scientific and Geological Research
Provides essential geological data for universities, institutes, and survey teams studying rock formation, stratigraphy, and tectonic features.

Water Well and Hydrogeological Surveys
Useful in shallow groundwater mapping or small-scale well installation, especially in areas requiring precise core analysis to locate aquifers.

Environmental Monitoring and Site Assessment
Used in contaminated land investigations and environmental site assessments, especially when undisturbed core samples are required for laboratory testing.

Remote & Mountainous Terrain Drilling
Its strong mobility and 40° climbing ability allow it to perform well in rugged, hilly, or remote environments where traditional rigs cannot easily reach.

FAQs:

Q1: What type of drilling is the JCD600 designed for?
A1: The JCD600 is specifically designed for diamond core drilling using wireline coring techniques with HTW, NTW, and BTW drill rods.

Q2: What is the maximum drilling depth of the JCD600?
A2: The rig can reach up to 800 meters with BTW rods, 700 meters with NTW, and 350 meters with HTW.

Q3: What engine powers the JCD600?
A3: It is powered by a 92kW turbocharged diesel engine from YUCHAI, running at 2400 RPM for stable and strong field performance.

Q4: What is the rated pressure and flow of the hydraulic system?
A4: The hydraulic system operates at a rated pressure of 20 MPa and a flow rate of 220 L/min, ensuring reliable function of all drilling operations.

Q5: What are the feed stroke and pull-up capacity?
A5: The JCD600 features a 1900mm hydraulic feed stroke, with a maximum pull-up capacity of 16 tons and push-down capacity of 8 tons.

Q6: Can the rig perform both vertical and angled drilling?
A6: Yes, the one-piece ground-touching mast supports adjustable drilling angles from 45° to 90°, suitable for both vertical and inclined core drilling.

Q7: What type of mud pump does the rig use?
A7: The rig comes with a BW-120 mud pump, capable of 0–120 L/min flow and up to 7 MPa pressure, ideal for soft to medium-hard formations.

Q8: Is there a rope hoist system included?
A8: Yes, the rig includes a 600kg rope hoist system with a 700-meter rope capacity, supporting auxiliary lifting and rod handling.

Q9: Does the JCD600 support remote operation?
A9: Yes, the rig supports both manual and remote control modes, offering flexibility and enhanced safety in the field.

Q10: What is the walking speed and climbing capacity?
A10: The JCD600 can travel at 3.5 km/h and climb slopes up to 40°, making it well-suited for rugged or remote job sites.

Q11: What are the transport dimensions and total weight?
A11: The transport dimensions are 4200 × 2050 × 2300 mm, and the weight ranges from 5 to 6 tons, depending on configuration.
